Multispot for peripheral treatment

Panretinal photocoagulation (PRP) has remained the standard of care for advanced diabetic retinopathy (DR) since the late 1970s, when the Diabetic Retinopathy Study (DRS) and the Early Treatment Diabetic Retinopathy Study (ETDRS) [1, 2] reported their benefit in blindness prevention in the proliferative stages of the disease.

Conventional single spot PRP is inherently destructive, nevertheless in the past decade new technologies have been introduced resulting in the development of a new generation of laser systems: Multispot Lasers. These are able to produce individual laser pulses shorter by an order of magnitude (0.01s-0,02s). At the same time these impulses are directed in a quick sequence one after another in so-called patterns.

Multispot treatment on periphery

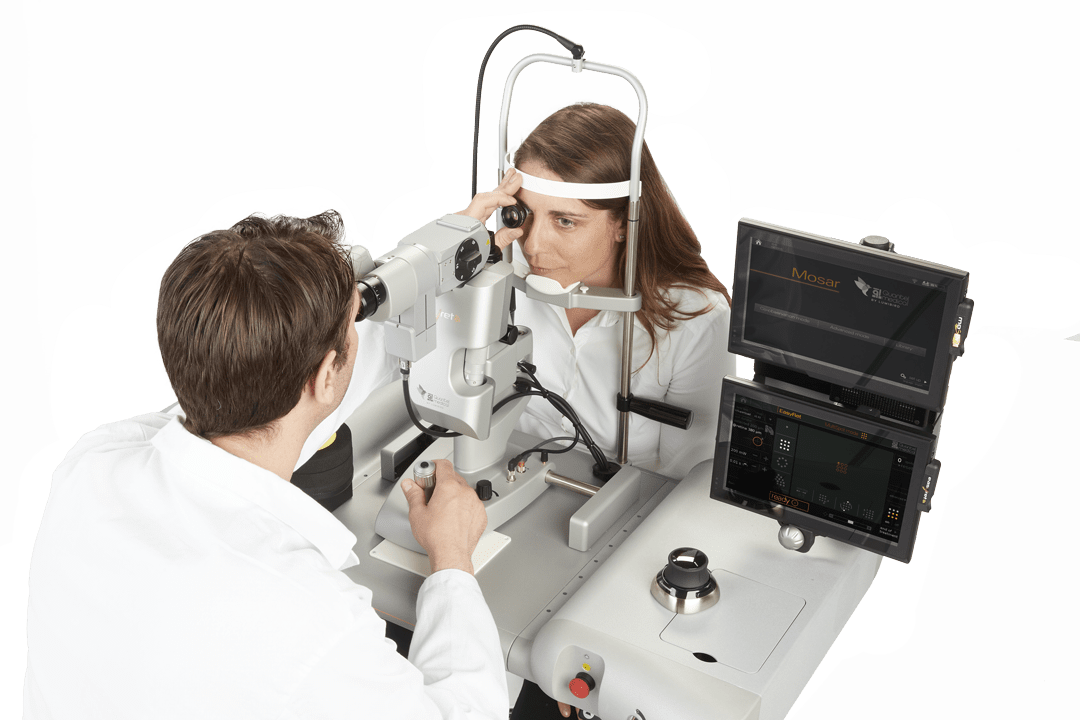

Treatment guidelines

Multispot laser photocoagulation is a novel method of delivering laser energy to the retina.

Before starting the laser treatment, the laser energy necessary for the production of one laser spot needs to be titrated (the pulse duration being shorter).

Thanks to a single spot, the laser energy is gradually increased until a grey laser spot is achieved.

The pattern can then be selected for treatment.

Easyret treatment guidelines Multispot

Multispot Treatment Guidelines

Clinical data

Characterized by the use of short pulse durations (10-20ms), the MultiSpot treatment mode offers many advantages over conventional photocoagulation in retinal treatments such as panretinal photocoagulation (PRP):

  • Less heat diffusion to the retina and choroid, less damage to the retinal nerve fiber layer1,2
  • Comfortable treatment better tolerated by patients3
  • Extremely fast treatment (full PRP in 1 session)4.

The MultiSpot treatment mode can be delivered through 4 customizable patterns for better adaptation to the treatment site: Square, Circle, Triple arcs, Single Spot.

Peripheral treatment - Clinical data PRP
Controversies in laser treatments
Play button

Anti-VEGF vs Laser for PDR, a changing treatment paradigm?

30/09/2021
Dr Lihteh Wu talks about the controversies in laser treatment in 2021 during the EURETINA symposium.
Victor Chong
Dr Victor Chong
Physicians' operating place
London, United Kingdom
PRP remains the standard of care, especially in patients with PDR. A combination therapy of PRP and an anti-VEGF agent may be useful in treatment-naïve patients with PDR.
Renato Passos
Dr Renato Passos
Physicians' operating place
Universidade Federal de São Paulo, São Paulo
PRP remains the standard cost-effective treatment of choice for PDR, reducing the risk of severe visual loss over the long term by 50%. New laser techniques have recently emerged to decrease the side effects associated with PRP. Among these, the 577-nm multispot laser combines the benefits of yellow wavelength with the benefits of shorter pulse duration and automated patterns of delivery (predictable and adjustable burn spacing, less thermal diffusion to the choroid leading to less pain, and faster treatments, among others).
Victor Chong
Dr Victor Chong
Physicians' operating place
London, United Kingdom
PRP remains the standard of care, especially in patients with PDR. A combination therapy of PRP and an anti-VEGF agent may be useful in treatment-naïve patients with PDR.
Renato Passos
Dr Renato Passos
Physicians' operating place
Universidade Federal de São Paulo, São Paulo
PRP remains the standard cost-effective treatment of choice for PDR, reducing the risk of severe visual loss over the long term by 50%. New laser techniques have recently emerged to decrease the side effects associated with PRP. Among these, the 577-nm multispot laser combines the benefits of yellow wavelength with the benefits of shorter pulse duration and automated patterns of delivery (predictable and adjustable burn spacing, less thermal diffusion to the choroid leading to less pain, and faster treatments, among others).

Physicians

Talk about Multispot
Laser Therapy

Bibliography

Objective: To systematically evaluate the effects of laser beam size, power, and pulse duration of 1 to 100 milliseconds on the characteristics of ophthalmoscopically visible retinal coagulation lesions.

Methods: A 532-nm Nd:YAG laser was used to irradiate 36 retinas in Dutch Belt rabbits with retinal beam sizes of 66, 132, and 330 mum. Lesions were clinically graded 1 minute after placement, their size measured by digital imaging, and their depth assessed histologically at different time points.

Results: Retinal lesion size increased linearly with laser power and logarithmically with pulse duration. The width of the therapeutic window, defined by the ratio of the threshold power for producing a rupture to that of a mild coagulation, decreased with decreasing pulse durations. For 132- and 330-mum retinal beam sizes, the therapeutic window declined from 3.9 to 3.0 and 5.4 to 3.7, respectively, as pulse duration decreased from 100 to 20 ms. At pulse durations of 1 millisecond, the therapeutic window decreased to unity, at which point rupture and a mild lesion were equally likely to occur.

Conclusions: At shorter pulse durations, the width and axial extent of the retinal lesions are smaller and less dependent on variations in laser power than at longer durations. The width of the therapeutic window, a measure of relative safety, increases with the beam size.

Clinical relevance: Pulse durations of approximately 20 milliseconds represent an optimal compromise between the favorable impact of speed, higher spatial localization, and reduced collateral damage on one hand, and sufficient width of the therapeutic window (> 3) on the other.

View

Purpose

To examine the effects of panretinal photocoagulation (PRP) using a pattern scanning laser (PASCAL) system on the retinal nerve fiber layer (RNFL) thickness in patients with diabetic retinopathy.

Methods

This retrospective study included 105 eyes with diabetic retinopathy, which consisted of three groups: the PASCAL group that underwent PRP with the PASCAL method (33 eyes), the conventional group that underwent conventional PRP treatment (34 eyes), and the control group that did not receive PRP (38 eyes). The peripapillary RNFL thickness was measured by optical coherence tomography before, six months, and one year after PRP to evaluate the changes in peripapillary RNFL.

Results

The RNFL thickness in the PASCAL group did not show a significant difference after six months (average 3.7 times, p = 0.15) or one year after the PRP (average 3.7 times, p = 0.086), whereas that in the conventional group decreased significantly after six months (average 3.4 times, p < 0.001) and one year after PRP (average 3.4 times, p < 0.001).

Conclusions

The results of this study suggest that the PASCAL system may protect against RNFL loss by using less energy than conventional PRP.

View

Purpose: We performed a study of laser panretinal photocoagulation in 20 patients with proliferative retinopathy. We compared short exposure, high-energy laser settings with conventional settings, using a 532 nm, frequency doubled, Neodymium-Yag laser and assessed the patients in terms of pain experienced and effectiveness of treatment.

Methods: Twenty patients having panretinal photocoagulation for the first time underwent random allocation to treatment of the superior and inferior hemi-retina. Treatment A used ‘conventional’ parameters: exposure time 0.1 s, power sufficient to produce a visible grey-white burns, spot size 300 microm. The other hemi- retina was treated with treatment B using exposure 0.02 s, 300 microm and sufficient power to have similar endpoint. All patients were asked to evaluate severity of pain on a visual analogue scale. (0=no pain, 10=most severe pain). All patients were masked as to the type of treatment and the order of carrying out the treatment on each patient was randomised. Patients underwent fundus photography and were followed up for 6-45 months.

Results: Seventeen patients had proliferative diabetic retinopathy, two had ischaemic central retinal vein occlusion and one had ocular ischaemic syndrome. The mean response to treatment A was 5.11, compared to 1.40 treatment B, on the visual analogue scale, which was statistically significant (P=0.001). All patients preferred treatment B. Further treatments, if required, were performed with treatment B parameters and long-term follow-up has shown no evidence of undertreatment.

Conclusions: Shortening exposure time of retinal laser is significantly less painful but equally effective as conventional parameters.

View

Objective: To investigate the effects of pattern scanning laser (Pascal; OptiMedica, Santa Clara, California) multispot panretinal photocoagulation given in a single-session (SS-PRP) vs single-spot multiple-session PRP (MS-PRP) on proliferative diabetic retinopathy (PDR).

Methods: Single-center, randomized clinical trial of 40 eyes. Proliferative diabetic retinopathy was treated with a 400-mum spot size in 1500 burns given either as Pascal in 20-millisecond SS-PRP or in 3 sessions (100-millisecond MS-PRP) during a 4-week period. Visual acuity, central subfield retinal thickness (CRT), and 24-2 Swedish interactive thresholding algorithm visual fields were recorded at baseline and 4 and 12 weeks.

Main outcome measures: Central subfield retinal thickness, mean deviation, and PDR grade at 12 weeks.

Results: There was a significant increase in mean CRT with MS-PRP (22 mum at 4 weeks, 95% CI, -32.25 to -10.75; 20 mum at 12 weeks, 95% CI, -28.75 to -10.82; P < .001) and no significant increase in the SS-PRP group. The mean deviation increased significantly in the SS-PRP group after 4 weeks (0.73 dB, P = .048), with no significant changes in either group at other points. A positive effect on PDR was observed in 74% of eyes in the SS-PRP group vs 53% in the MS-PRP group (P = .31). Mean treatment time for SS-PRP was 5.04 minutes (SD, 1.5 minutes) compared with 59.3 (SD, 12.7 minutes) in the MS-PRP group (P < .001).

Conclusions: There were no adverse outcomes (CRT, visual acuity, or visual field) from using multispot SS-PRP vs single-spot MS-PRP at 12 weeks postlaser, and treatment times were significantly shorter for multispot SS-PRP. Pascal SS-PRP was as effective as MS-PRP in the treatment of PDR.

Application to clinical practice: Twenty-millisecond Pascal SS-PRP may be safely and rapidly performed in 1500 burns with a similar efficacy to conventional MS-PRP. TRIAL IDENTIFIER: Research and Development Office PIN R00037, Central Manchester University Hospitals Foundation Trust.

View
